Versatile
- Comes in three wall thicknesses, (.070”, .096”, and .250”)
- Bullet resistant (.250” wall), withstands most types of ammunition cost-efficient replacement for steel in many high-risk applications
Rugged
- Highest strength-to-weight ratio of any conduit material available
- High impact resistant construction easily withstands rough handling in the field
- UV resistant
Lightweight
- Workers can easily lift and carry sections, making it easy to handle
- Reduces worker fatigue
Economical to install
- Lighter weight and high strength simplify installation, eliminate the need for expensive lifting equipment and reduce the quantity of support hardware, such as bridge hangers, by as much as 50%
- Also reduces bridge permitting costs when the permits are based on weight
Easy to install
- To join sections, a simple push and twist motion is all that’s required
- Inner duct alignment is simple and secure, due to the same anti-reversing, gasketed coupling system used in PVC Opti-Com®
Non-corrosive
- Highly resistant to corrosive road chemicals, salt, bacteria, weather conditions, and ultra-violet decomposition
Long service life
- Adhesive-bondable male and female ends assure a permanent, watertight seal
- Fiberglass material is essentially inert; it will not corrode, deteriorate or decompose
Wide service-temperature range
- Remains stable and rigid from -40˚ to +230˚ F
- Will not become brittle in extreme cold or deform in heat generated by short-term electrical overloads
- Expansion and contraction forces are minimal
Non-conductive
- Due to the non-metallic material properties of fiberglass, damaging electrolysis will not occur
- Non-conductivity also eliminated the need for expensive, insulated bridge hangers
Full System Configuration
- Available with a complete line of factory bends, expansion joints and bridge hangers to accommodate virtually any installation requirement


Inner Duct Specifications
Product |
Number of Inner Ducts |
Duct Descriptions |
Inside Diameter |
Minimum Wall Thickness (each) |
Opti-Com 43 |
3 |
Smoothwall PVC |
1.507” |
.079” |
Opti-Com 44 |
4 |
Smoothwall PVC |
1.275” |
.075” |
Opti-Com 43 |
3 |
Ribbed Polyethylene |
1.476” |
.080” |
Opti-Com 44 |
4 |
Ribbed Polyethylene |
1.263” |
.075” |
Outer Duct Specifications
Product |
Minimum Wall |
Pipe Outside Diameter |
Total Weight |
Bundle Quality |
Truckload Quality |
Standard Wall FG70 |
.070” |
4.140” |
1.7 lbs/ft |
1520’ |
18,240’ |
Heavy Wall FG96* |
.095” |
4.192” |
1.9 lbs/ft |
1520’ |
18,240’ |
Bullet Resistant FG(BRFG) |
.250” |
4.500” |
3.7 lbs/ft |
1520’ |
12,160’ |
*Please note the change in Heavy Wall thickness, from .090” to .096”.

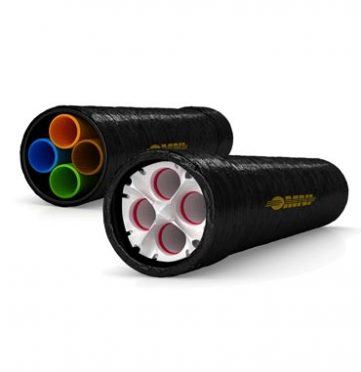

Fiberglass Opti-Com® comes in 20-foot overall lengths with a 60-inch Integral bell end on one end and matching inner and outer duct spigots on the other end. Standard fiberglass outer duct color is black. Fiberglass outer ducts can be manufactured in other colors, such as orange, to identify fiber optic cables.
Opti-Com® Fiberglass
Inner Duct Description |
Part Numbers Std Wall FG70 |
|
Part Numbers Heavy Wall FG96 |
|
Part Numbers BRFG |
|
|
OC43 |
OC44 |
OC43 |
OC44 |
OC43 |
OC44 |
Smoothwall PVC |
503202117 |
506202117 |
503302117 |
506302117 |
503402117 |
506402117 |
Linear Ribbed PE |
503202467 |
506202457 |
503302467 |
506302457 |
503402467 |
506402457 |
