HDPE

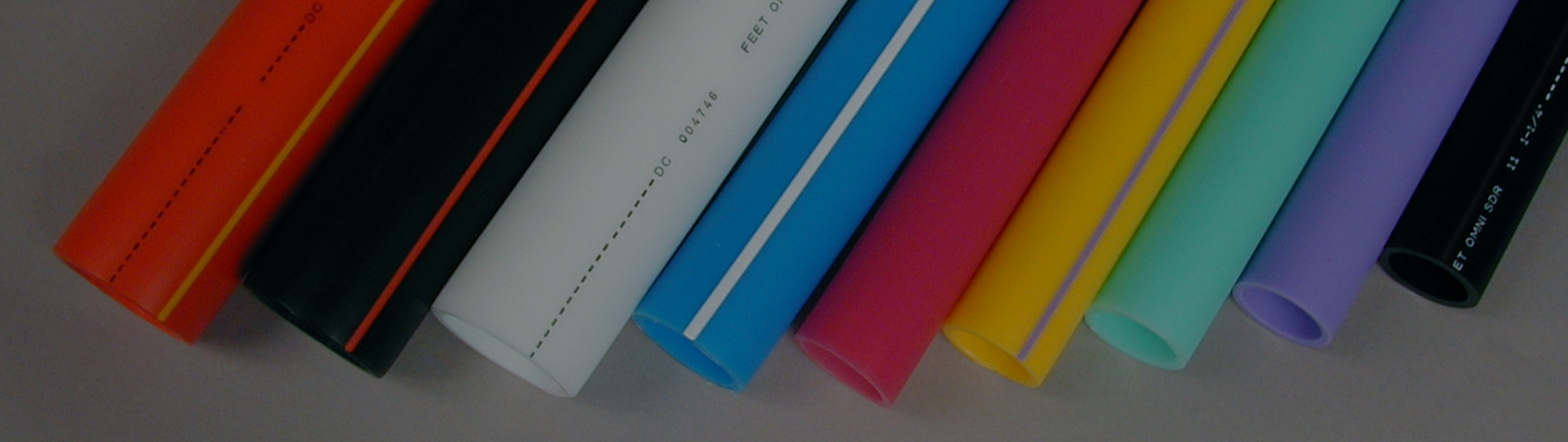

For easy identification in multiple duct runs, OMNI® HDPE Innderduct comes in a variety of colors including:

  • Black
  • White
  • Green
  • Yellow
  • Red
  • Blue
  • Orange

Footage marks are printed on the outer wall every two feet for run length verification. OMNI® HDPE Innderduct is also available with a ribbed interior, ribbed exterior or both. All ribs are longitudinal for less friction when pulling into the conduit system or when installing cable. OMNI® HDPE Innderduct is also available with ropes or tapes pre-inserted. Contact your OMNI® representative for more information.

NOTE: Dimensions do NOT include internal or external rib heights where applicable. Other sizes and wall thickness are available upon request.

    • Contain Footage Marks on the Outer Wall Every Two Feet for Run Length Verification
    • OMNI® HDPE Innderduct is Available with a Ribbed Interior, Ribbed Exterior or both
    • Custom Sizes and Wall Thickness Available Upon Request
    • Comes in Variety of Colors including black, white, green, yellow, red, High-Densityange

  • High-Density Polyethylene Compound Designed Specifically for Telecommunications

Nominal Duct Size SDR Outside Diameter Nominal Inside Minimum Wall
1” 13.5 1.315” 1.121” .097”
1” 11 1.315” 1.077” .119”
1” 9 1.315” 1.023” .146”
1” Sch 40 1.315” 1.049” .133”
1” Sch 80 1.315” 0.957” .179”
1.25” 13.5 1.660” 1.414” .123”
1.25” 11 1.660” 1.358” .151”
1.25” 9 1.660” 1.292” .184”
1.25” Sch 40 1.660” 1.380” .140”
1.25” Sch 80 1.660” 1.278” .191”
1.50” 13.5 1.900” 1.618” .141”
1.50” 11 1.900” 1.554” .173”
1.50” 9 1.900” 1.478” .211”
1.50” Sch 40 1.900” 1.380” .145”
1.50” Sch 80 1.900” 1.278” .200”
2” 13.5 2.375” 2.023” .176”
2” 11 2.375” 1.943” .216”
2” 9 2.375” 1.847” .264”
2” Sch 40 2.375” 2.067” .154”
2” Sch 80 2.375” 1.939” .218”

NOTE: SIDR SIZES ARE ALSO AVAILABLE


Nominal Duct Size SDR Outside Diameter Nominal Inside Minimum Wall
3” 13.5 3.500” 2.982” .259”
3” 11 3.500” 2.864” .318”
3” 9 3.500” 2.722” .389”
3” Sch 40 3.500” 3.068” .216”
3” Sch 80 3.500” 2.900” .300”
4” 13.5 4.500” 3.834” .333”
4” 11 4.500” 3.682” .409”
4” 9 4.500” 3.500” .500”
4” Sch 40 4.500” 4.026” .237”
4” Sch 80 4.500” 3.826” .337”
5” 13.5 5.563” 4.739” .412”
5” 11 5.563” 4.551” .506”
5” 9 5.563” 4.327” .618”
5” Sch 40 5.563” 5.047” .258”
5” Sch 80 5.563” 4.813” .375”
6” 13.5 6.625” 5.643” .491”
6” 11 6.625” 5.421” .602”
6” 9 6.625” 5.153” .736”
6” Sch 40 6.625” 6.065” .280”
6” Sch 80 6.625” 5.761” .432”
8” 13.5 8.625” 7.347” .639”
8” 11 8.625” 7.057” .784”
8” 9 8.625” 6.709” .958”
10” 13.5 10.750” 9.158” .796”
10” 11 10.750” 8.796” .977”
10” 9 10.750” 8.362” 1.194”
12” 13.5 12.750” 10.862” .944”
12” 11 12.750” 10.432” 1.159”
12” 9 12.750” 9.916” 1.417”

NOTE: SIDR SIZES ARE ALSO AVAILABLE

Details:

  • Locate buried conduit using conventional toning equipment
  • Copper conductor is easily separated from conduit wall to enable joining conduit and copper conductor
  • Standard continuous lengths of products are available
  • Variety of color selection of conduit is available

FEATURES

  • Locate buried conduit using conventional toning equipment
  • Copper conductor is easily separated from conduit wall to enable joining conduit and copper conductor
  • Standard continuous lengths of products are available
  • Color selection of conduit is available

GENERAL AND TECHNICAL INFORMATION

This product is utilized for locating empty underground HDPE conduit and underground HDPE conduit containing dielectric optical fiber cables using industry standard locating equipment.

OMNI® toneable conduit is manufactured per ASTM F 2160, utilizing HDPE resin per ASTM D 3350. Conduit represents nominal dimensions as specified by ASTM D 2447, NEMA TC 7 and UL 651 B. The locatable wire is 18 AWG solid copper conductor per ASTM B3, not exceeding 10 OHMS/1,000 ft. and is co-extruded onto the outside diameter of the conduit within a high density polyethylene protective encasement.

OMNI® toneable conduit is available in a variety of sizes and colors which can be manufactured with or without pre-installed pull tape. Conduit has a continuous legible print line listing manufacturing date, production code and sequential footage marks. Additional wording may be added within the standard OMNI print line data.

Installation may require splice points either in the trench, in an underground pull box or in an above ground enclosure. When joining conduit, all types of mechanical couplers can be used. When joining toneable wire, all splices below grade must be environmentally sealed against the elements.

QUICK REFERENCE TONEABLE CONDUIT SIZE TABLE

Nominal Duct Size Schedule/SDR Outside Diameter Nominal Inside Minimum Wall
1” 11 1.315” 1.077” 0.119”
1” Sch 40 1.315” 1.049” 0.133”
1” Sch 80 1.315” 0.957” 0.179”
1.25” 11 1.660” 1.358” 0.151”
1.25” Sch 40 1.660” 1.380” 0.140”
1.25” Sch 80 1.660” 1.278” 0.191”
1.50” 11 1.900” 1.554” 0.173”
1.50” Sch 40 1.900” 1.380” 0.145”
1.50” Sch 80 1.900” 1.278” 0.200”
2” 11 2.375” 1.943” 0.216”
2” Sch 40 2.375” 2.067” 0.154”
2” Sch 80 2.375” 1.939” 0.218”

NOTE: OTHER SIZES AVAILABLE

OMNI® uses a high density polyethylene compound that is designed specifically for manufacturing telecommunications HDPE duct, including Toneable OMNI® HDPE Innerduct.
The physical properties and attributes are listed within the following table:

PROPERTY ASTM TEST METHOD TYPICAL VALUE
Density ASTM D 1505 0.946 – 0.955 g/cc
Melt Index ASTM 1238 0.06 – 0.25 g/10 min
Tensile Strength @ yield D 638 3100 psi
Tensile Strength @ break D 638 4600 psi
Ultimate Elongation, % D 638 > 690%
Flexural Modulus, psi D 790 120,000 – 185,000 psi
Brittleness Temperature D 746 procedure A < -76º C
ESCR, F0, Hours D 1693 Condition C > 1500
Nominal Duct Size Schedule/ EPEC-B Outside Diameter Nominal Inside Minimum Wall
2” EPEC-B 2.375” 2.023” 0.176”
2” SCH 40 2.375” 2.067” 0.154”
2” SCH 80 2.375” 1.939” 0.218”
3” EPEC-B 3.500” 2.982” 0.259”
3” SCH 40 3.500” 3.068” 0.216”
3” SCH 80 3.500” 2.900” 0.300”
4” EPEC-B 4.500” 3.834” 0.333”
4” SCH 40 4.500” 4.026” 0.237”
4” SCH 80 4.500” 3.826” 0.337”
5” SCH 40 5.563” 5.047” 0.258”
5” SCH 80 5.563” 4.813” 0.375”
6” SCH 80 6.625” 5.761” 0.432”

CONDUIT MANUFACTURED IN THE COLOR OF GRAY, OTHER COLORS AVAILABLE BY SPECIAL ORDER.
HDPE Schedule 40, Schedule 80, EPEC B, when directly buried or encased in concrete in trenches outside of buildings, may be used with wire rated 90°C or less.
