OMNI® is proud to offer Micro-Com®, Direct Bury Micro-Duct Bundles. Tight and protected, Micro-Com® micro-ducts are a great option for the installation of fiber. Micro-duct diameters range from 4mm to 27mm. The bundled micro-duct can be fitted with multiple configurations in terms of size and quantity of the micro-duct tubes. For example, the slot cut has become a popular construction method and flat bundled micro-ducts are an excellent configuration for this type of construction.
Micro-Com® micro-ducts are manufactured using virgin HDPE resin and are contained within a protective outer sheath, which is also manufactured from prime virgin resin. The bundled micro-duct is created primarily for direct bury applications. Bundled micro-duct can also be ordered with copper tracer wire. The OMNI® standard colors are shown below on the following page. However, custom color combinations are available.
All Micro-Com® micro-ducts can be fitted with a lubricated lining, which reduces the coefficient of friction, and are available with either a smooth or ribbed interior.
*Please contact our sales representatives to inquire about custom-designed micro-duct bundles.
DETAILS

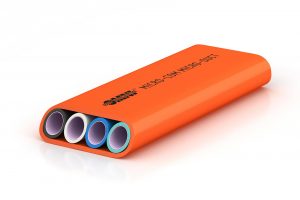

Micro-Com® micro-duct diameters range from 4mm to 27mm, and the Micro-Com® micro-duct bundles can be configured with up to seven (7) micro-ducts (tubes). The Micro-Com® micro-ducts are manufactured using virgin resin and are contained within a protective outer sheath that is made from virgin MDPE resin. The Micro-Com® micro-duct bundle is used for direct-bury applications and is a great system where space is limited. When space is really an issue, the slot cut method using a flat Micro-Com® micro-duct configuration has become a popular solution.
Micro-Com® micro-duct bundles can also be ordered with copper tracing wire.
The OMNI® standard colors are shown below, but custom color combinations are available,
All Micro-Com® micro-ducts come standard with OMNI®’s permanent co-extruded lubricated lining system, OMNI-Glide Amethyst™, and are available with either a smooth or ribbed interior.
HDPE Micro-Com® Micro-duct is manufactured to the following dimensions.
| Size OD/ID (mm) | OD (mm) | WALL THICKNESS (mm) | ID MINIMUM (mm) | MIN BEND RADIUS (in) | TENSILE STRENGTH (lbs) | SAFE WORKING LOAD (lbs.) |
| 4/2.8 | 4 ± 0.10 | 0.60 ± 0.0/0.10 | 2.7 | 3 | 22 | 18 |
| 5/3.5 | 5 ± 0.10 | 0.75 ± 0.0/0.10 | 3.2 | 4 | 45 | 36 |
| 7/4 | 7 ± 0.10 | 1.50 ± 0.0/0.10 | 3.9 | 5 | 76 | 60 |
| 7/5.5 | 7 ± 0.10 | 0.75 ± 0.0/0.10 | 5.2 | 5 | 66 | 59 |
| 8.5/6 | 8.5± 0.10 | 1.25 ± 0.0/0.10 | 5.7 | 5 | 126 | 113 |
| 10/8 | 10 ± 0.10 | 1.00 ± 0.0/0.10 | 7.7 | 5 | 125 | 112 |
| 11/9 | 11 ± 0.10 | 1.00 ± 0.0/0.10 | 8.7 | 5 | 140 | 123 |
| 12/10 | 12 ± 0.10 | 9.39 ± 0.0/0.10 | 9.8 | 5 | 146 | 131 |
| 12.7/10 | 12.7 ± 0.10 | 1.29 ± 0.0/0.10 | 9.8 | 5 | 207 | 186 |
| 14/10 | 14 ± 0.10 | 1.50 ± 0.0/0.10 | 9.7 | 6 | 336 | 300 |
| 14/11 | 14 ± 0.10 | 1.50 ± 0.0/0.10 | 10.7 | 6 | 263 | 172 |
| 14/12 | 14 ± 0.10 | 1.50 ± 0.0/0.10 | 11.7 | 6 | 182 | 162 |
| 16/11 | 16 ± 0.10 | 2.50 ± 0.0/0.13 | 10.7 | 6 | 473 | 424 |
| 16/11.7 | 16 ± 0.10 | 2.16 ± 0.0/0.13 | 11.3 | 6 | 419 | 377 |
| 16/13 | 16 ± 0.10 | 1.50 ± 0.0/0.10 | 12.7 | 6 | 305 | 274 |
| 16.8/13 | 16.8 ± 0.10 | 1.90 ± 0.0/0.10 | 12.7 | 6 | 397 | 361 |
| 18/15 | 18 ± 0.10 | 1.37 ± 0.0/0.13 | 14.9 | 8 | 320 | 288 |
| 18/14 | 18 ± 0.10 | 2.16 ± 0.0/0.13 | 13.3 | 7 | 480 | 432 |
| 19.7/16 | 19.7 ± 0.10 | 1.85 ± 0.0/0.13 | 15.7 | 9 | 464 | 428 |
| 20/17 | 20 ± 0.10 | 1.50 ± 0.0/0.13 | 16.7 | 9 | 390 | 359 |
| 22/16 | 22 ± 0.10 | 3.00 ± 0.0/0.13 | 15.7 | 12 | 801 | 720 |
| 24/19 | 20 ± 0.10 | 2.50 ± 0.0/0.13 | 18.7 | 12 | 755 | 679 |
| 27/20 | 20 ± 0.10 | 3.50 ± 0.0/0.13 | 19.7 | 12 | 1157 | 1041 |

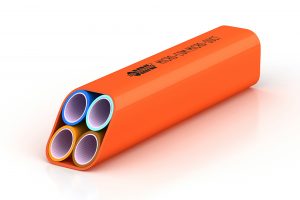

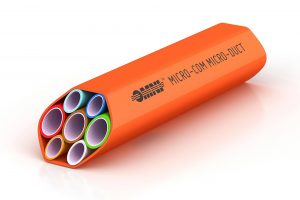

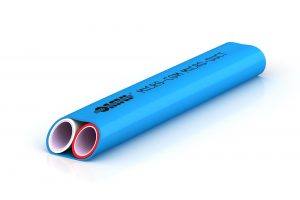

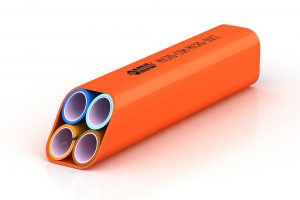

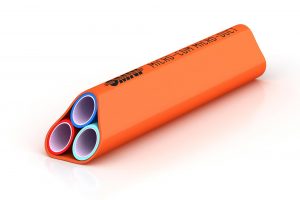

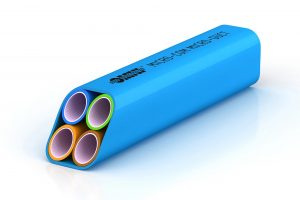

Bundled Micro-Com® Micro-ducts

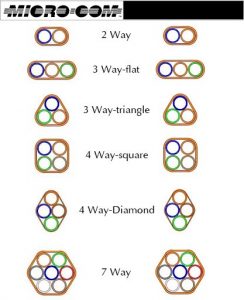

Micro-Com® Micro-duct can be manufactured in bundles as listed below. The (f) listed within column “Number of micro-ducts” denotes a flat bundle.
| MICRO DUCT SIZE (mm) | NUMBER OF MICRO DUCTS | OUTER SHEATH THICKNESS (in) | NOMINAL OUTSIDE DIAMETER (in) | SAFE WORKING LOAD (lbs.) |
| 27/20 | 4 | 0.070 | 2.64 | 3650 |
| 24/19 | 4 | 0.070 | 2.25 | 3262 |
| 22/16 | 4 | 0.070 | 2.13 | 2850 |
| 18/15 | 2 (f) | 0.070 | 1.56 | 1281 |
| 18/15 | 3 | 0.070 | 1.46 | 1699 |
| 18/15 | 3 (f) | 0.070 | 2.27 | 1829 |
| 18/15 | 4 | 0.070 | 1.56 | 2116 |
| 18/14 | 2 (f) | 0.070 | 1.56 | 1700 |
| 18/14 | 3 | 0.070 | 1.46 | 2132 |
| 18/14 | 3 (f) | 0.070 | 2.27 | 2261 |
| 18/14 | 4 | 0.070 | 1.56 | 2694 |
| 16/13 | 4 | 0.070 | 1.40 | 1960 |
| 16/13 | 7 | 0.070 | 2.03 | 3014 |
| 14/10 | 7 | 0.070 | 1.79 | 2370 |
| 14/12 | 7 | 0.070 | 1.79 | 1534 |
| 12.7/10 | 2 (f) | 0.070 | 1.14 | 881 |
| 12.7/10 | 3 | 0.070 | 1.07 | 1157 |
| 12.7/10 | 3 (f) | 0.070 | 1.64 | 1249 |
| 12.7/10 | 4 | 0.070 | 1.14 | 1435 |
| 12.7/10 | 7 | 0.070 | 1.64 | 2173 |
| 12/10 | 2 (f) | 0.070 | 1.09 | 746 |
| 12/10 | 3 | 0.070 | 1.09 | 963 |
| 12/10 | 3 (f) | 0.070 | 1.56 | 1049 |
| 12/10 | 4 | 0.070 | 1.09 | 1180 |
| 12/10 | 7 | 0.070 | 1.56 | 1745 |
| 10/8 | 2 (f) | 0.070 | 0.93 | 636 |
| 10/8 | 3 | 0.070 | 0.93 | 821 |
| 10/8 | 3 (f) | 0.070 | 1.32 | 911 |
| 10/8 | 4 | 0.070 | 0.93 | 1006 |
| 10/8 | 7 | 0.070 | 1.32 | 1489 |
| 8.5/6 | 2 (f) | 0.060 | 0.81 | 526 |
| 8.5/6 | 3 | 0.060 | 0.81 | 692 |
| 8.5/6 | 3 (f) | 0.060 | 1.14 | 744 |
| 8.5/6 | 4 | 0.060 | 0.81 | 858 |
| 8.5/6 | 7 | 0.060 | 1.14 | 1304 |
| 7/5.5 | 2 (f) | 0.040 | 0.70 | 278 |
| 7/5.5 | 3 | 0.040 | 0.97 | 366 |
| 7/5.5 | 3 (f) | 0.040 | 0.97 | 395 |
| 7/5.5 | 4 | 0.040 | 0.70 | 453 |
| 7/5.5 | 7 | 0.040 | 0.97 | 686 |
| 5/3.5 | 2(f) | 0.040 | 0.47 | 198 |
| 5/3.5 | 3 | 0.040 | 0.45 | 258 |
| 5/3.5 | 3(f) | 0.040 | 0.67 | 279 |
| 5/3.5 | 4 | 0.040 | 0.47 | 318 |
| 5/3.5 | 7 | 0.040 | 0.67 | 478 |
| 4/2.8 | 2 (f) | 0.040 | 0.40 | 198 |
| 4/2.8 | 3 | 0.040 | 0.40 | 258 |
| 4/2.8 | 3 (f) | 0.040 | 0.56 | 279 |
| 4/2.8 | 4 | 0.040 | 0.40 | 318 |
| 4/2.8 | 7 | 0.040 | 0.56 | 478 |
